KM878240G01 LCEUIO Testing & Diagnostic Tool

Download the data sheet Producer:
KONE

Product id:
KM878240G01

Description:

LCEUIO testing & diagnostic tool for accessing LCE parameters.

The device is able to unlock any type of KONE elevator and escalator, as long as it can be connected to the motherboard of that device.
The device provides a menu for 200 starts and has no connection limits.

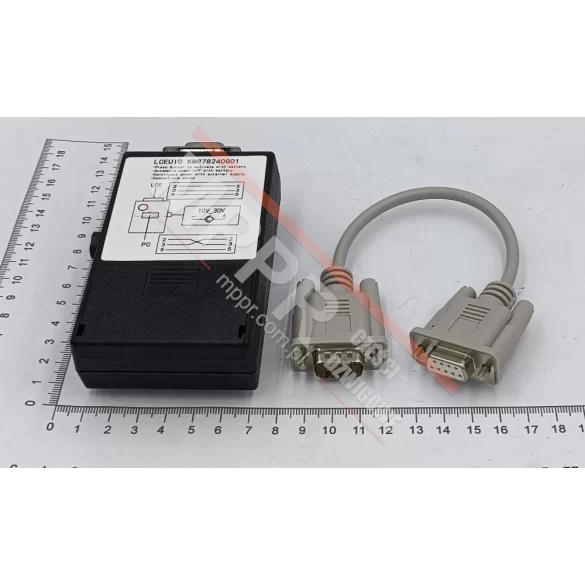

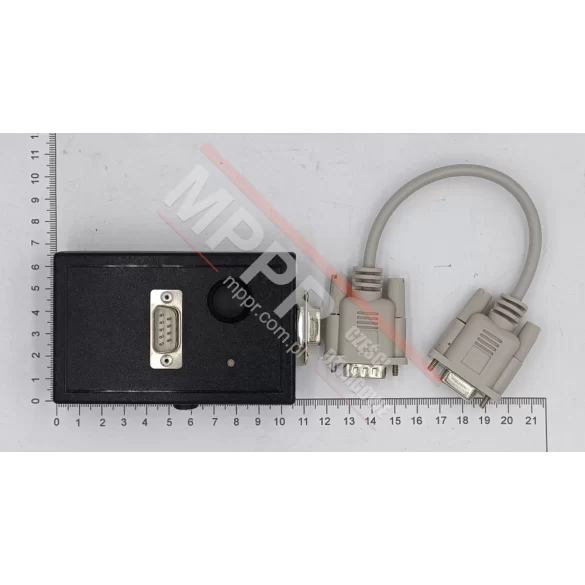

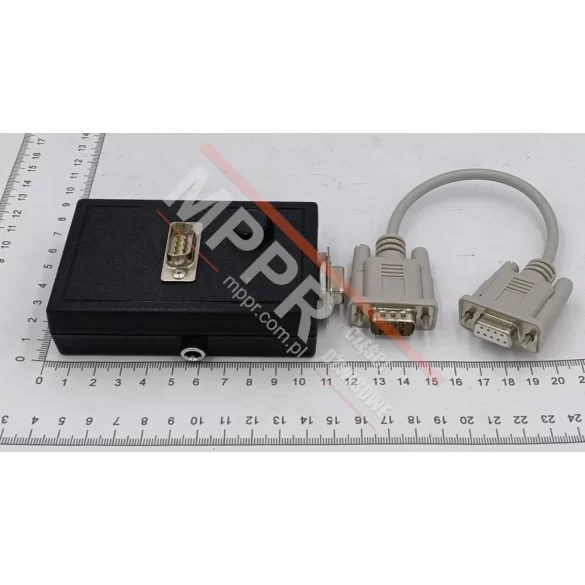

Device description:

- Connect input A (Pin D9) to LOPCB boards: PCECPU40, LCECPU591 or MAP.
- The power button is also used to open the device.
- LED light is used for diagnosis.
- Input B (Pin D9) is used to troubleshoot connection problems.
- The device is powered by a 9V battery.
- Two cables included, one for LCECPU20 and the other for LCECPU40 or LOPCB.

Dimensions (mm): 105 x 63 x 32.3
